5250 Subfile: Full Screen and Windows

(Under Construction)

This is a working application that allows display, selection and maintenance of a customer master. The screens are similar to what you see in PDM. The code is modular and there are several programs that can be called from multiple places. SQL is used for all database IO. There are full screen subfiles and subfiles in a window.

Sample Inquiry Screens

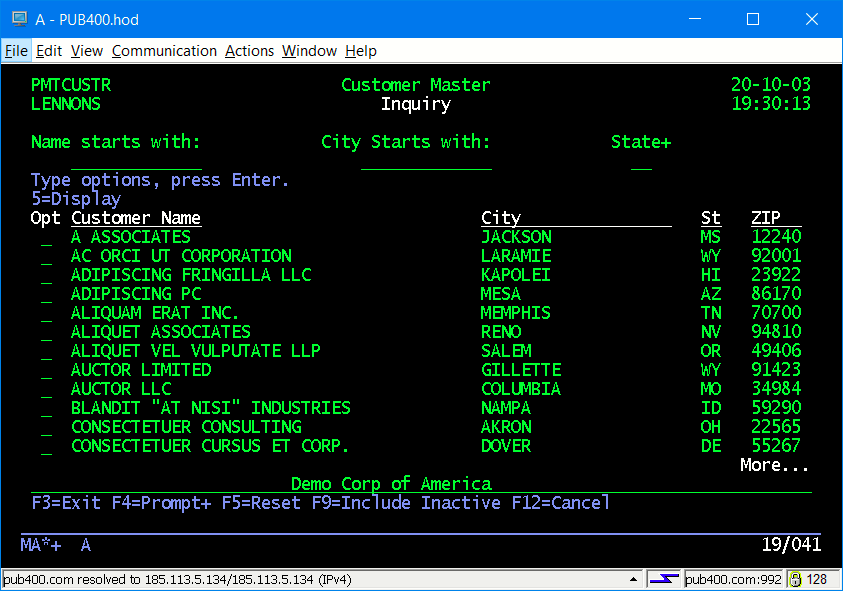

Inquiry Subfile

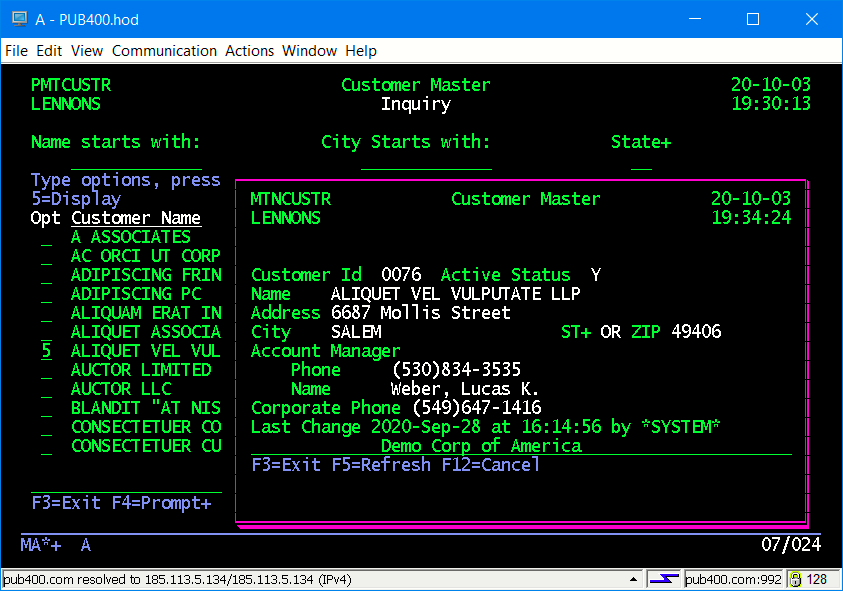

Inquiry Subfile

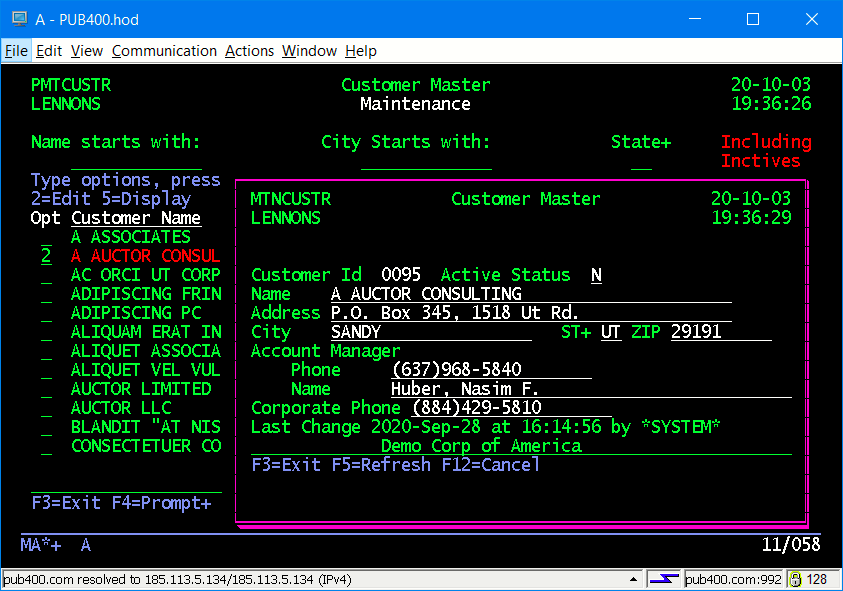

Sample Maintenance Screen

Inquiry Subfile

  • PMTCUSTR

    RPG program that puts up a 5250 subfile that allows searching by customer name, city and state. Display of Inactive records can be toggled using F9.

    There are 3 functions, or modes, controlled by the first parameter passsed: Inquiry to display a record; Maintenance to change a record;, Selection to return a customer id.

      - I gives 5=Display
      - M gives 2=Edit 5=Display
      - S gives 1=select 5=Display


    Conceptually, you can call this program from almost anywhere and access to it is contolled by whatever menuing or security system you have in place. The general user population would progably get Inquiry and Sales would have Maintanance. Selection could be used for any in-house program that needed to prompt for a customer id number.

  • PMTCUSTD

    This is the display file for PMTCUSTR.

  • CustMast.SQL

    SQL code to create and populate the CUSTMAST tsble. You will need to change the set schema to your target library.

    Contains 300 randomly generate rows, courtesy of the fine folk at http://generatedata.com/, plus a little tweaking by hand.
